autoharp

Semi-automatic grading of R and Rmd scripts: powerful, flexible, and designed for real-world teaching at scale.

autoharp is an R package that provides a customisable set of tools for assessing and grading R or R Markdown scripts submitted by students. It goes beyond simple correctness checking to offer a complete, four-layer grading framework used in production across undergraduate statistics courses.

Why autoharp?

Grading programming assignments at scale is hard. Students submit diverse code that may be correct but structured differently, or incorrect in subtle ways that output-comparison alone cannot catch. autoharp solves this with four complementary layers:

Feature	What it Does
✅ Output correctness	Compare student objects against a reference solution using typed, tolerance-aware checks
⏱️ Runtime & memory profiling	Measure how long student code takes and how much memory it uses
🌳 Static code analysis (AST)	Inspect Abstract Syntax Trees to check how students solved a problem: e.g., “did they use `apply` instead of a `for` loop?”
🔍 Similarity detection	Identify suspiciously similar submissions using cosine, Jaccard, or edit-distance metrics

The autoharp Workflow

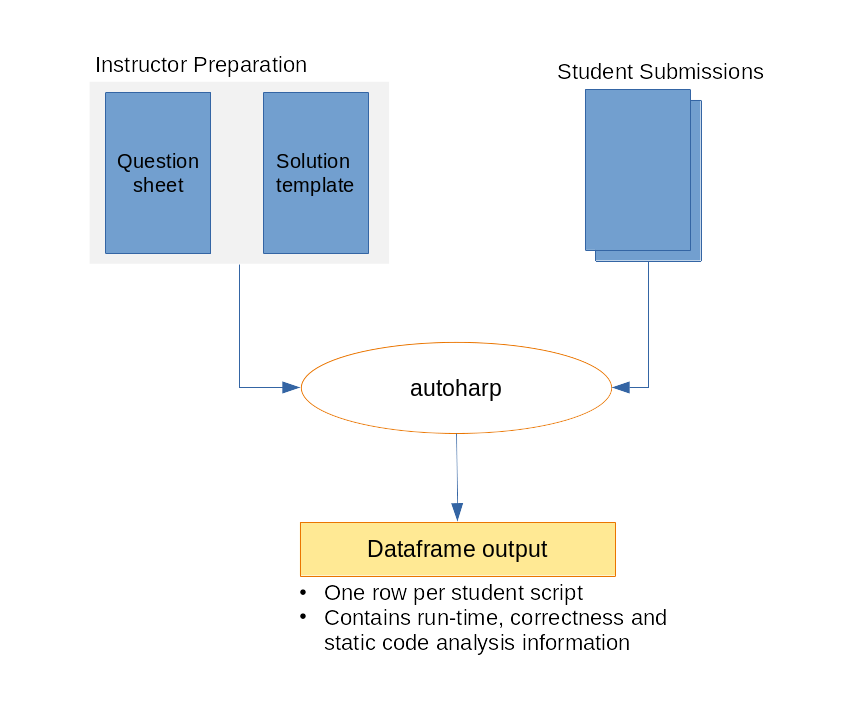

autoharp four-phase grading workflow: Prepare → Distribute → Grade → Review

The workflow has four phases:

📝 Prepare: Write a question sheet and a solution template (an Rmd with special autoharp.objs / autoharp.scalars chunk options)
📤 Distribute: Share the question sheet and a blank student template
⚙️ Grade: Run populate_soln_env() then render_one() per student; each submission runs in a sandboxed R process
📊 Review: Inspect results via logs, thumbnail galleries, and the interactive Grading App

Installation

You can install autoharp from CRAN with:

install.packages("autoharp")

You can also install the development version of autoharp from GitHub with:

# install.packages("devtools")
devtools::install_github("namanlab/autoharp")

Quick Start

library(autoharp)

# 1. Render the solution template to build a reference environment
soln <- populate_soln_env("solution_template.Rmd")

# 2. Grade a student submission (runs in a sandboxed process)
result <- render_one(
  rmd_name  = "student_submission.Rmd",
  soln_env  = soln$soln_env,
  test_file = soln$test_file,
  out_dir   = "grading_output/"
)

# 3. Inspect the grading result
print(result)

The Three Pillars of autoharp

1. 📄 Complete Documents, Not Snippets

autoharp grades complete, reproducible documents: entire R scripts or R Markdown files, rather than isolated code snippets. This encourages good scientific computing practices and tests the full submission pipeline.

2. 🌳 Static Analysis via AST Trees

The TreeHarp S4 class represents any R expression as a rooted tree, enabling structural code checks that go beyond output comparison:

# Convert an expression to a tree
tree <- lang_2_tree(quote(mean(x + rnorm(10))))
plot(tree)

# Check for absence of for-loops across an entire student script
forest <- rmd_to_forestharp("student_script.Rmd")
has_for_loop <- any(sapply(forest, function(t) {
  any(t@nodeTypes$name == "for")
}))

3. 🖥️ Integrated Shiny Applications

autoharp ships with three ready-to-use Shiny applications:

App	Audience	Purpose
Grading App	Instructor	Multi-tab GUI for batch grading, session management, and manual plot review
Similarity App	Instructor	Detect code similarities using cosine, Jaccard, or edit-distance metrics
Solution Checker	Student	Self-service portal to check submissions before the deadline

The Grading App

The Grading App provides a complete browser-based interface for the grading workflow - no command-line required. It features session management, auto-generated object tests, plot comparison, and batch grading with a live progress bar.

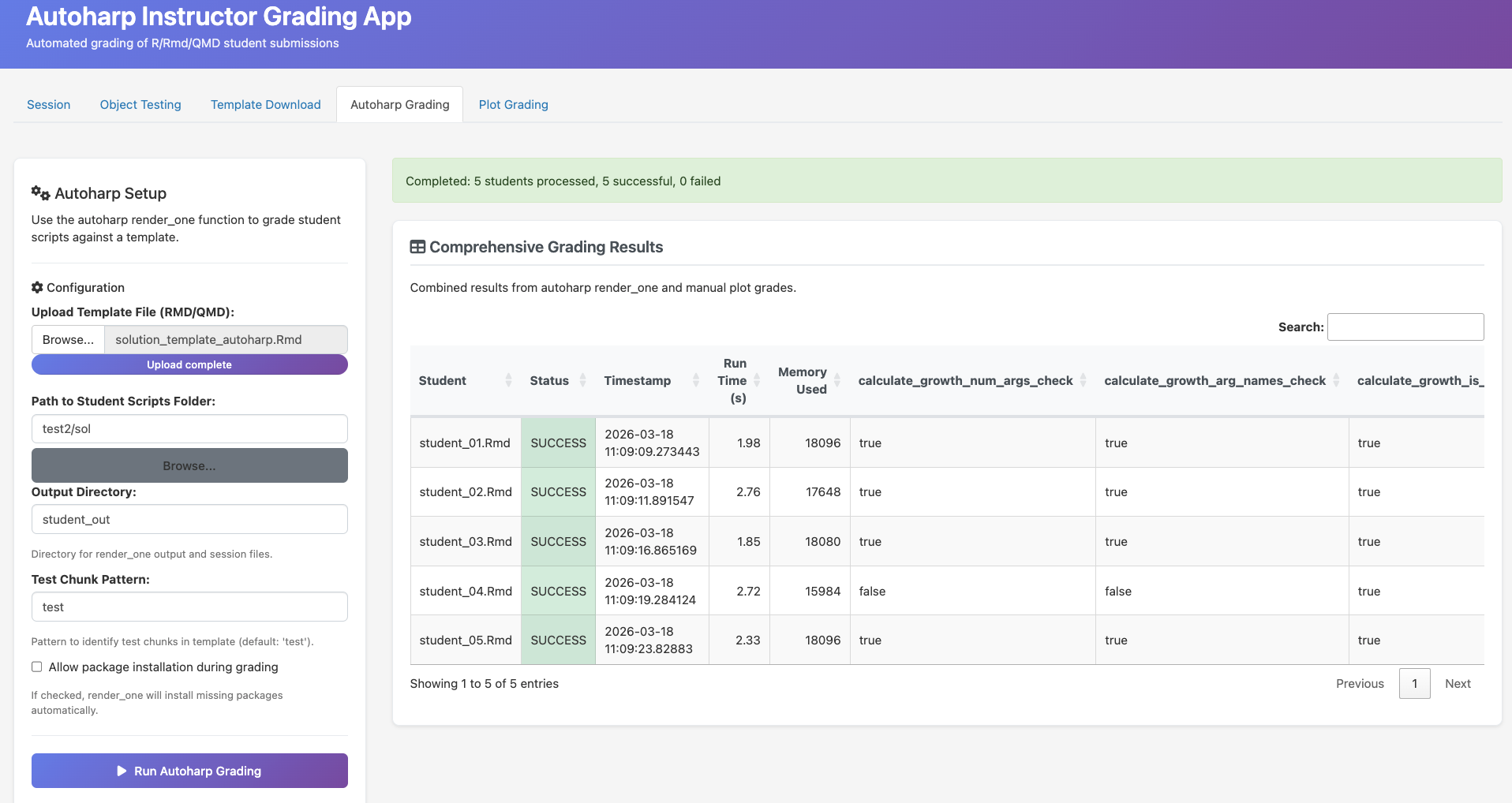

Grading App: Autoharp Grading tab
Batch grading: run render_one() for all student submissions with live progress tracking

Similarity Detection

The Similarity App helps identify suspiciously similar submissions using three metrics: cosine similarity, Jaccard index, and edit distance.

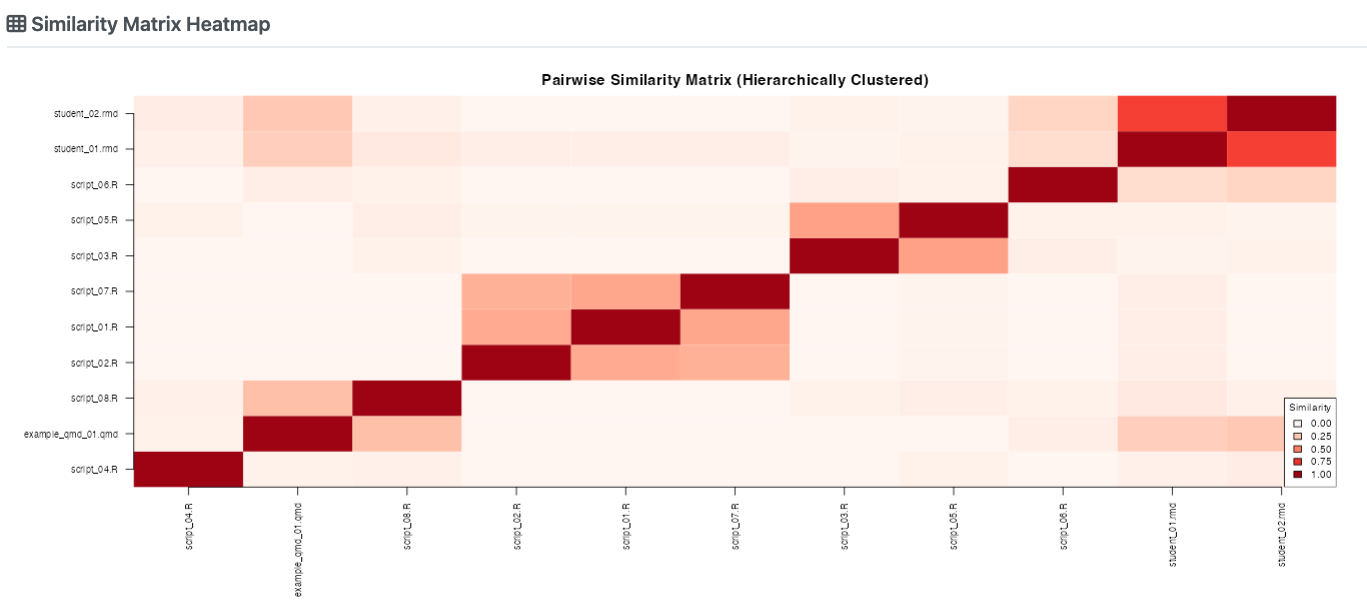

Similarity App: pairwise heatmap of student submissions
Pairwise similarity heatmap: darker cells indicate higher similarity between submissions

The Solution Checker (Student Portal)

The Solution Checker is a student-facing portal where students can self-check their submission before the deadline.

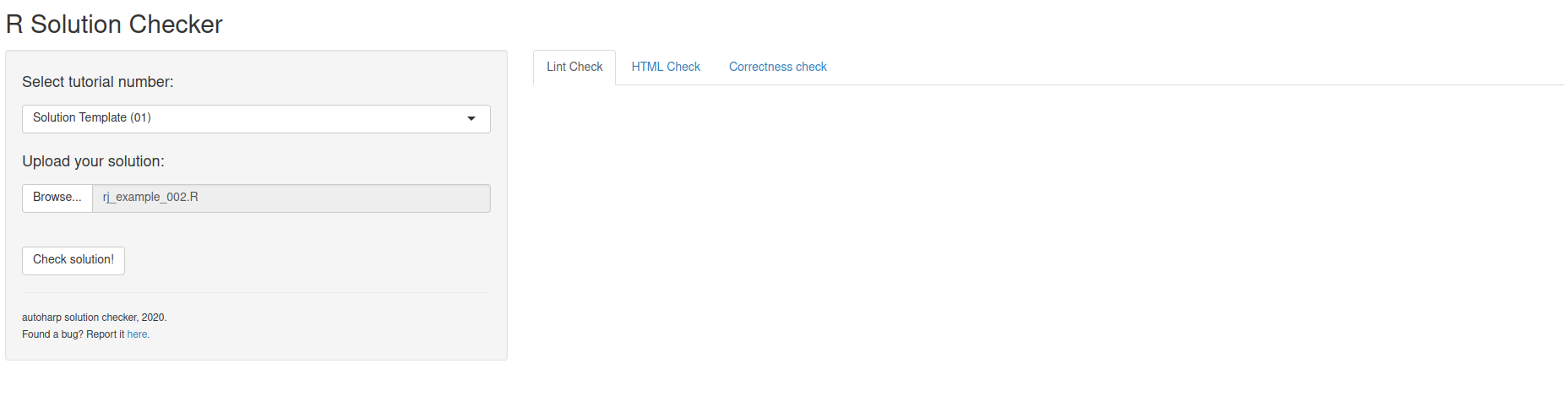

Solution Checker: student interface
Students upload their script and instantly see correctness results, lint feedback, and runtime stats

In a NUS course with 122 students across two assignments, the Solution Checker saw peak usage of 19 logins/day in the final 3 days before submission, evidence that students actively use it to iterate on their work.

Real-World Validation

autoharp was developed and validated at the National University of Singapore across multiple cohorts. Key highlights from production use:

✅ Graded hundreds of R/Rmd submissions across statistics courses
⏱️ Each submission grades in under 2 minutes in a sandboxed process
🔍 Identified multiple cases of academic dishonesty via the Similarity App
📝 Students using the Solution Checker showed higher submission quality

Learning More

📖 Get Started: step-by-step introduction
🌳 TreeHarp Tutorial: deep dive into AST-based analysis
🔄 Grading Workflow: complete end-to-end example
📚 Function Reference: full API documentation

Citation

If you use autoharp in your teaching or research, please cite:

@article{gopal2022autoharp,
  title   = {autoharp: An R Package for Autograding R/Rmd/qmd Scripts},
  author  = {Gopal, Vikneswaran and Naman, Agrawal and Huang, Yuting},
  year    = {2026}
}
