# boiwsa

boiwsa is an R package for performing weekly seasonal adjustment on time series data. It provides a simple, easy-to-use interface for calculating seasonally adjusted estimates of weekly data, as well as a number of diagnostic tools for evaluating the quality of the adjustments.

The seasonal adjustment procedure is based on a locally-weighted least squares procedure (Cleveland et al., 2014).

We consider the following decomposition model:

$y_{t}=T_{t}+S_{t}+H_{t}+O_{t}+I_{t},$

where $$T_{t}$$, $$S_{t}$$ , $$O_{t},$$ $$H_{t}$$ and $$I_{t}$$ represent the trend, seasonal, outlier, holiday- and trading-day, and irregular components, respectively. The seasonal component is modeled as

$\begin{eqnarray*} S_{t} &=&\sum_{k=1}^{K}\left( \alpha _{k}^{y}\sin (\frac{2\pi kD_{t}^{y}}{ n_{t}^{y}})+\beta _{k}^{y}\cos (\frac{2\pi kD_{t}^{y}}{n_{t}^{y}})\right) + \\ &&\sum_{l=1}^{L}\left( \alpha _{l}^{m}\sin (\frac{2\pi lD_{t}^{m}}{n_{t}^{m}} )+\beta _{l}^{m}\cos (\frac{2\pi lD_{t}^{m}}{n_{t}^{m}})\right) , \end{eqnarray*}$

where $$D_{t}^{y}$$ and $$D_{t}^{m}$$ are the day of the year and the day of the month, and $$n_{t}^{y}$$ and $$n_{t}^{m}$$ are the number of days in the given year or month. Thus, the seasonal adjustment procedure takes into account the existence of two cycles, namely intrayearly and intramonthly.

The trend component is extracted with Friedman’s SuperSmoother using stats::supsmu().

Like the X-11 method (Ladiray and Quenneville, 2001), the boiwsa procedure uses an iterative principle to estimate the various components. The seasonal adjustment algorithm comprises eight steps, which are documented below:

• Step 1: Estimation of trend ($$T_{t}^{(1)}$$) using stats::supsmu().

• Step 2: Estimation of the Seasonal-Irregular component:

$y_{t}-T_{t}^{(1)}=S_{t}+H_{t}+O_{t}+I_{t}$

• Step 2*: Searching for additive outliers

• Step 2**: Identifying the optimal number of trigonometric variables

• Step 3: Computing seasonal factors (and possibly other factors as $$H_{t}$$ or $$O_{t}$$) using WLS. In this version, for each year $$t$$ and the observation year $$\tau$$ we use a simple geometrically decaying weight function $$w_{t}=r^{|t-\tau|}$$, where $$r \in (0,1]$$.

• Step 4: Estimation of trend ($$T_{t}^{(2)}$$) from seasonally and outlier adjusted series using stats::supsmu()

• Step 5: Estimation of the Seasonal-Irregular component: $y_{t}-T_{t}^{(2)}=S_{t}+H_{t}+O_{t}+I_{t}$

• Step 6: Computing the final seasonal factors (and possibly other factors as $H_{t}$ or $$O_{t}$$) using WLS.

• Step 7: Estimation of the final seasonally adjusted series: $y_{t}-S_{t}-H_{t}$

• Step 8: Computing final trend ($$T_{t}^{(3)}$$) estimate from seasonally and outlier adjusted series using stats::supsmu().

## Installation

To install boiwsa, you can use devtools:

# install.packages("devtools")
devtools::install_github("timginker/boiwsa")

Alternatively, you can clone the repository and install the package from source:

git clone https://github.com/timginker/boiwsa.git
cd boiwsa
R CMD INSTALL .

## Usage

Using boiwsa is simple. First, load the boiwsa package:

library(boiwsa)

Next, load your time series data into a data frame object. Here is an example that is based on the gasoline data from the fpp2 package:

data("gasoline.data")

plot(gasoline.data$date,gasoline.data$y,type="l",xlab="Year",ylab=" ", main="Weekly US gasoline production")

Once you have your data loaded, you can use the boiwsa function to perform weekly seasonal adjustment:

res=boiwsa(x=gasoline.data$y,dates=gasoline.data$date)

The x argument takes the series to be seasonally adjusted, while the dates argument takes the associated dates in date format. Unless specified otherwise (i.e., my.k_l = NULL), the procedure automatically identifies the best number of trigonometric variables to capture the yearly ($$K$$) and monthly ($$L$$) cycles based on the AICc. The information criterion is specified by the ic option. The weighting decay rate is specified by r (by default r=0.8).

The procedure automatically searches for additive outliers (AO) using the method described in Appendix C of Findley et al. (1998). To disable the automatic AO search, set auto.ao.search = F. To add user-defined AOs, use the ao.list option.

The boiwsa function returns a list object containing the results. The seasonally adjusted series is stored in a vector called sa. In addition, the estimated seasonal factors are stored as sf.

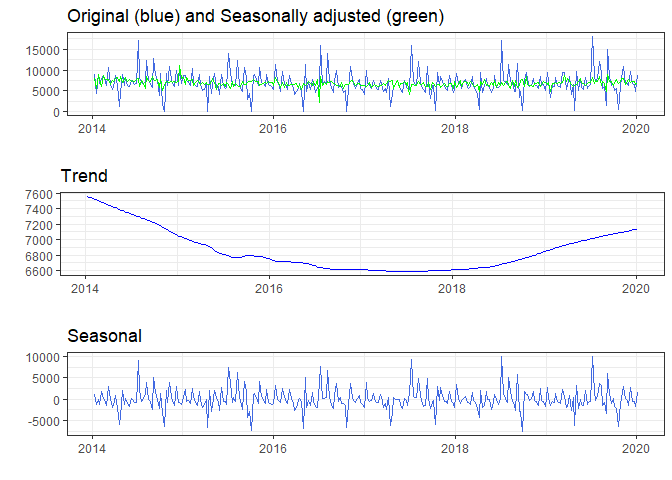

You can then plot the adjusted data to visualize the seasonal pattern:

plot(gasoline.data$date,gasoline.data$y,type="l",xlab="Year",ylab=" ", main="Weekly US gasoline production")
lines(gasoline.data$date,res$sa,col="red")
legend(
"topleft",
legend = c("Original", "SA"),
lwd = c(2,2),
col = c("black", "red"),
bty = "n"
)

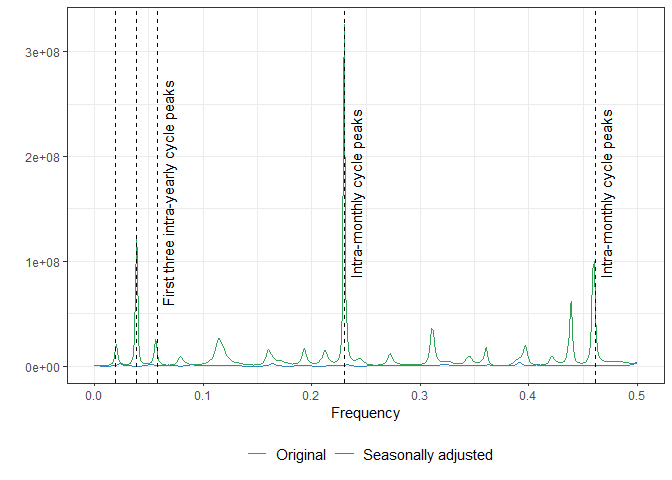

To evaluate the quality of the adjustment, you can use the plot_spec function provided by the package, which generates a plot of the autoregressive spectrum of the raw and seasonally adjusted data:

plot_spec(res)

# References

Cleveland, W.P., Evans, T.D. and S. Scott (2014). Weekly Seasonal Adjustment-A Locally-weighted Regression Approach (No. 473). Bureau of Labor Statistics.

Findley, D.F., Monsell, B.C., Bell, W.R., Otto, M.C. and B.C Chen (1998). New capabilities and methods of the X-12-ARIMA seasonal-adjustment program. Journal of Business & Economic Statistics, 16(2), pp.127-152.

Ladiray, D. and B. Quenneville (2001). Seasonal adjustment with the X-11 method.

# Disclaimer

The views expressed here are solely of the author and do not necessarily represent the views of the Bank of Israel.

Please note that boiwsa is still under development and may contain bugs or other issues that have not yet been resolved. While we have made every effort to ensure that the package is functional and reliable, we cannot guarantee its performance in all situations.

We strongly advise that you regularly check for updates and install any new versions that become available, as these may contain important bug fixes and other improvements. By using this package, you acknowledge and accept that it is provided on an “as is” basis, and that we make no warranties or representations regarding its suitability for your specific needs or purposes.
