ggRandomForests: Visually Exploring Random Forests

DOI cranlogs

CRAN_Status_Badge active codecov

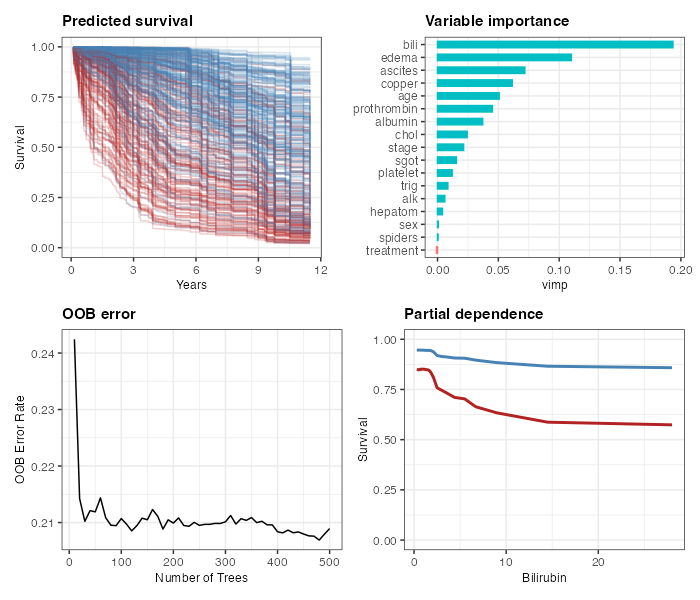

ggRandomForests will help uncover variable associations in the random forests models. The package is designed for use with the randomForest package (A. Liaw and M. Wiener 2002) or the randomForestSRC package (Ishwaran et.al. 2014, 2008, 2007) for survival, regression and classification random forests and uses the ggplot2 package (Wickham 2009) for plotting diagnostic and variable association results. ggRandomForests is structured to extract data objects from randomForestSRC or randomForest objects and provides S3 functions for printing and plotting these objects.

The randomForestSRC package provides a unified treatment of Breiman’s (2001) random forests for a variety of data settings. Regression and classification forests are grown when the response is numeric or categorical (factor) while survival and competing risk forests (Ishwaran et al. 2008, 2012) are grown for right-censored survival data. Recently, support for the randomForest package (A. Liaw and M. Wiener 2002) for regression and classification forests has also been added.

Many of the figures created by the ggRandomForests package are also available directly from within the randomForestSRC or randomForest package. However, ggRandomForests offers the following advantages:

The package has recently been extended for Breiman and Cutler’s Random Forests for Classification and Regression package randomForest where possible. Though methods have been provided for all gg_* functions, the unsupported functions will return an error message indicating where support is still lacking.

References

Breiman, L. (2001). Random forests, Machine Learning, 45:5-32.

Ishwaran H. and Kogalur U.B. (2014). Random Forests for Survival, Regression and Classification (RF-SRC), R package version 1.5.5.

Ishwaran H. and Kogalur U.B. (2007). Random survival forests for R. R News 7(2), 25–31.

Ishwaran H., Kogalur U.B., Blackstone E.H. and Lauer M.S. (2008). Random survival forests. Ann. Appl. Statist. 2(3), 841–860.

A. Liaw and M. Wiener (2002). Classification and Regression by randomForest. R News 2(3), 18–22.

Wickham, H. ggplot2: elegant graphics for data analysis. Springer New York, 2009.
